5 Documentation and Downloads

PiBot V4.7B source files used by this tutorial

The YAML is an I/O test configuration. Do not use it unchanged on a machine with motors, spindle or laser connected.

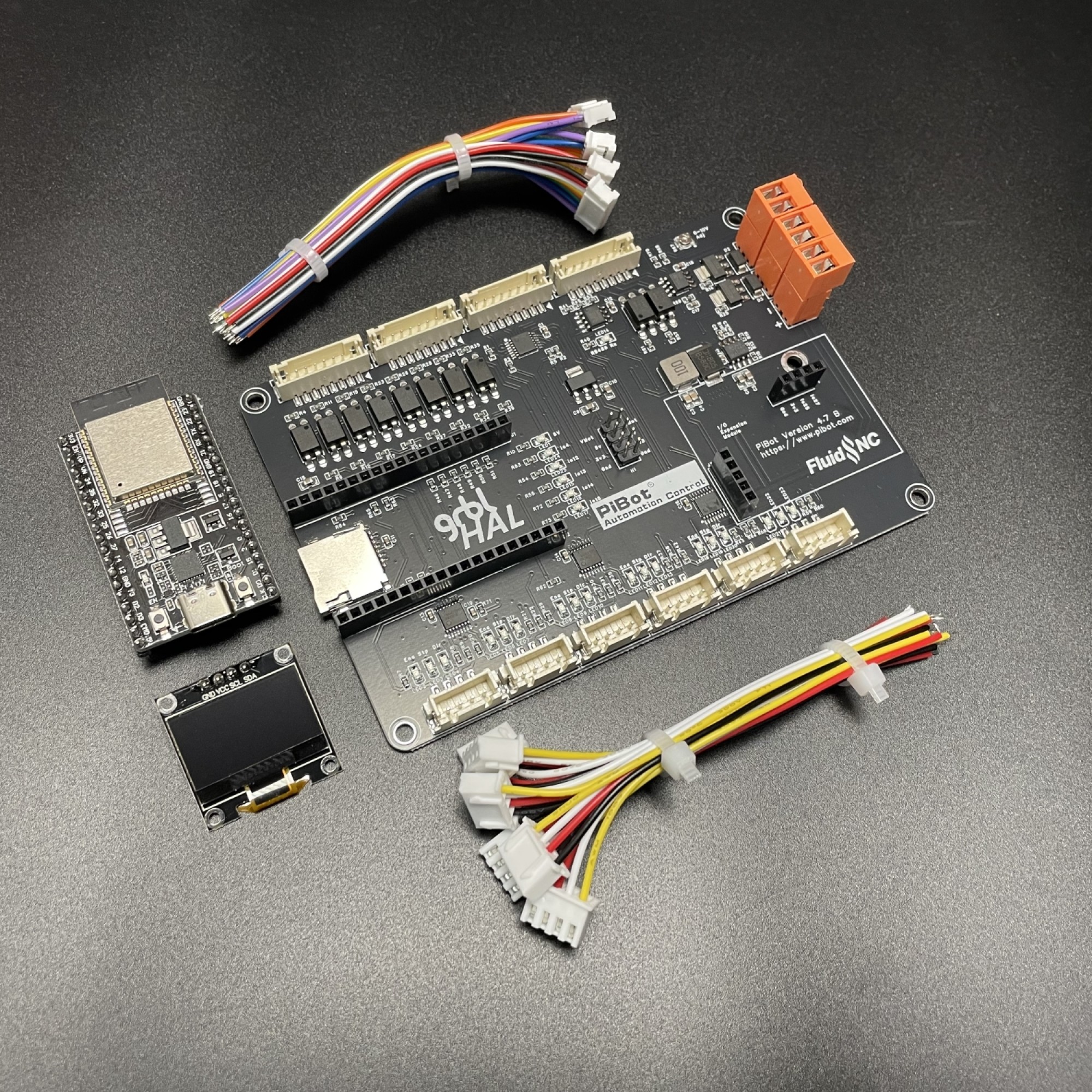

PiBot V4.7B board, plug-in ESP32 module, OLED and accessories

V4.7B carrier, plug-in classic ESP32 module, OLED and related items.

V4.7B Pinmap

Annotated connector, GPIO and I2SO reference.

Board Photo

V4.7B with the ESP32 module and OLED installed.

Board and Accessories

Carrier, plug-in module, OLED and supplied cables.

Schematic

Electrical schematic dated 2026-08-05.

FluidNC Test YAML

XYYZA bench-test profile used by sections 2 and 3.

Keep an untouched diagnostic copy. Build a separate machine YAML containing only the axes, inputs, spindle/laser and accessories your machine actually uses.
